Perkins A4.236 T6.354 Cast Iron Cylinder Sleeve 3135X032 3637032M1 3637332M1

接触

Perkins A4.236 T6.354 Cast Iron Cylinder Sleeve 3135X032 3637032M1 3637332M1

最小注文数量 :	400PCS	価格 :	USD1-8 Per Piece
パッケージの詳細 :	カートン箱	受渡し時間 :	30日
支払条件 :	L/C、T/T、ウェスタン・ユニオン、MoneyGram、Paypal	供給の能力 :	1ヶ月あたりの50000PCS

起源の場所:	中国	ブランド名:	OEM
証明:	ISO	モデル番号:	AJL102

詳細情報
材料:	鋳鉄	OEM:	3135X032/ 3637032M1 3637332M1/3637332Z1 3637332
エンジンは作る:	パーキンズ	エンジンコード:	A4.236/T6.354
サイズ:	Dia 98.501xTL 226.44	保証:	1年
名前:	シリンダーはさみ金の袖	タイプ:	乾燥した鋳鉄シリンダーはさみ金
ハイライト:	鋳鉄シリンダー袖パーキンズA4.236、3637332M1は、鋳鉄シリンダー袖パーキンズT6.354を , 3637332M1 , cast iron cylinder sleeve Perkins T6.354

製品の説明

Cast Iron Cylinder Sleeve For Perkins A4.236 T6.354 3135X032/ 3637032M1 3637332M1

We manufacture the cylinder liner sleeve from 55mm to 170mm, both Wet cylinder sleeve and Dry cylinder

Sleeves, With exact dimension, accuracy,standards and optimum tolerance.

We can OEM Your Brand, Or produce according to drawings and samples.

QUICK DETAILS

Name: Cylinder Liner

Engine: Perkins A4.236/T6.354

OEM:

3135X032/ 3637032M1
3637332M1/ 3637332Z1
3637332

Bore size: Dia 98.501xTL 226.44

Description: Semi finished dry cylinder sleeves and finished dry cylinder sleeves

Moq: 400pcs

Lead time: 40 days

Payment: T/T, L/C, Trade assurance


OTHER MODELS

PERKINS LINER SLEEVES
AJL096	A3.152/4.203/AD4.203	31358323 734179M1/ 734179	91.49x93.66x215.9,Collar 3.808mm	216
AJL097	A3.152/4.203/AD4.203	31358322/ 1434175M1 31358345/ 734175M1 739043M1/ 739043	91.49x94.98x215.9,Collar 3.86mm	216
AJL098	A4.212/A4.236/ 6.354/T6.354	31358361/ 31358349 31358393/ 744131M1 744131	98.48	227.4
AJL099	A4.212/A4.236	31358341/ 31358394 31358441/ 736507M3 744948M1/ 744948Z1	98.48	227.4
AJL100	A4.236/T4.236	3135X031/ 3637031M1 3637331M1/ 3637331Z1 3638796M91	98.48	227.4
AJL101	A4.212/A4.236/ 6.354/T6.354	31358441/ 31358341 31358394/ 31358441 736507M3/ 744948M1 744948Z1/ 744948	98.48	227.4
AJL102	A4.236/T6.354	3135X032/ 3637032M1 3637332M1/ 3637332Z1 3637332	Dia 98.501xTL 226.44	SF
AJL103	T4.40/T6.60	3135X063/043WV39	Dia99.162xDia104.3xDia107.4x227.5	DRY
AJL104	T4.40/T6.60	3135X041/ 748215M1	Dia100xDia104.3xDia107.5x227.4	DRY
AJL105	T4.40/T6.60	3135X042/ 748216M1 3158X042/ 748216/043WV20	Dia100xDia104.2xDia107.5x226.7	SF
AJL106	T4.40/T6.60	3135X062/043WV30	φ98.5×φ103.2×φ106.4×227	DRY
AJL107	A4.248/A4.248.S	31358346/ 740571M1	101.06	TL 227.447
AJL108	A4.248	31358343/ 737214M1	101.06	227.3
AJL109	A4.248/A4.248.S	31358352/ 742466M1 742466Z1/ 742466	101.06	227.3
AJL110	A4.248.S	3135X033/ 3637033M1 3637333M1/ 3637033M91 3637333	101.092	226.4
AJL111	A4.248.S	3135X034/ 3637034M1 3637334M1/ 3637334	101.092	226.4
AJL112	A4.318	31358533/ 745990M1	114.4	230.5
AJL113	A4.318	31358534/ 745991M1	114.4	230.5
AJL114	3.152	31358384	90.7	216.1
AJL115	4.236/6.354	31358403 / 745-340-M1	97.61	227.28
AJL116	4.236/6.354	31358399	97.61	227.28
AJL117	4.236/6.354	31358395 / 744-132-M1	98.247	227.28
AJL118	T4.236/4.238		98.48	228.8
AJL119	4.236/6.354	31358396 / 745-245-M1	98.247	227.28
AJL120	4.236	3135X035	98.501	226.44
AJL121	4.236/6.354	31358397 / 745-246-M1	98.501	227.28
AJL122	4.236/6.354	31358398 /	98.501	227.28
AJL123	4.40/6.60	3135X044	99.7	226.44
AJL124	T4.40/T6.60	3135X061	99.825	227.477
AJL125	4.40 / 6.60	3135X045	100.038	226.44
AJL126	T4.40/T6.60/ T4.401/T6.601	3135X065	100.038	227.477
AJL127	V8.640	31358531 / 745-543-M1	116.71	226.16
AJL128	V8.640	3135X021/746-675-MI	116.8	225.53
AJL129	V8.640	31358532 / 745-544-M1	117.627	226.16
AJL130	V8.640	3135X022 / 746-676-MI	117.64	225.53

ABOUT US

Cylinder Liner sleeve is our key products. We are able to produce both Wet cylinder liner and Dry cylinder

liner. The material include cast iron and steel. The bore size from 55mm to 170mm. The applications inclu

-de: compressors, generators, cars, trucks, heavy duty machines, and marine engines.

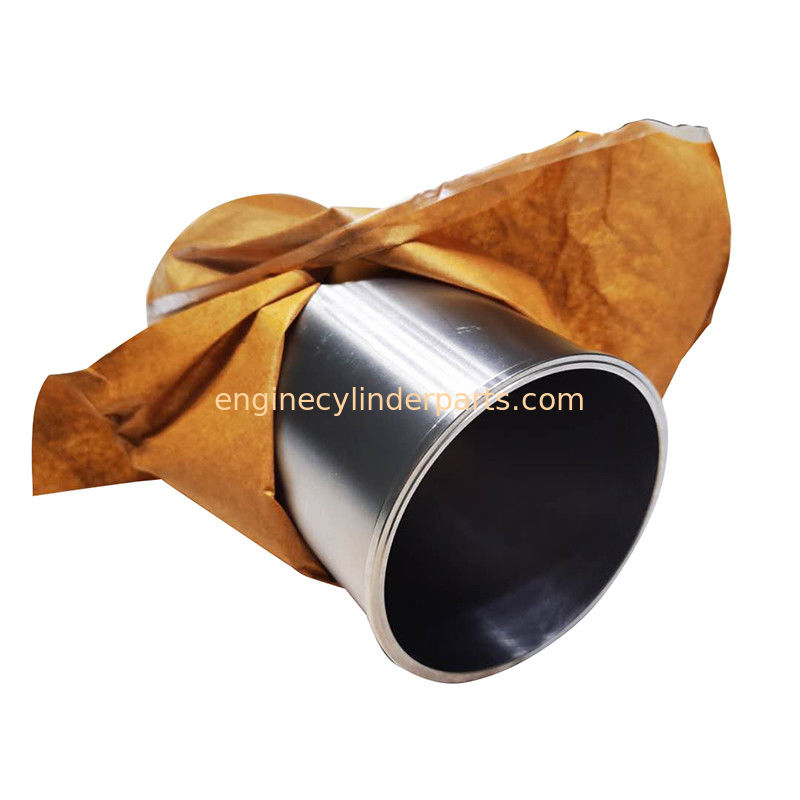

Perkins A4.236 T6.354 Cast Iron Cylinder Sleeve 3135X032 3637032M1 3637332M1 1

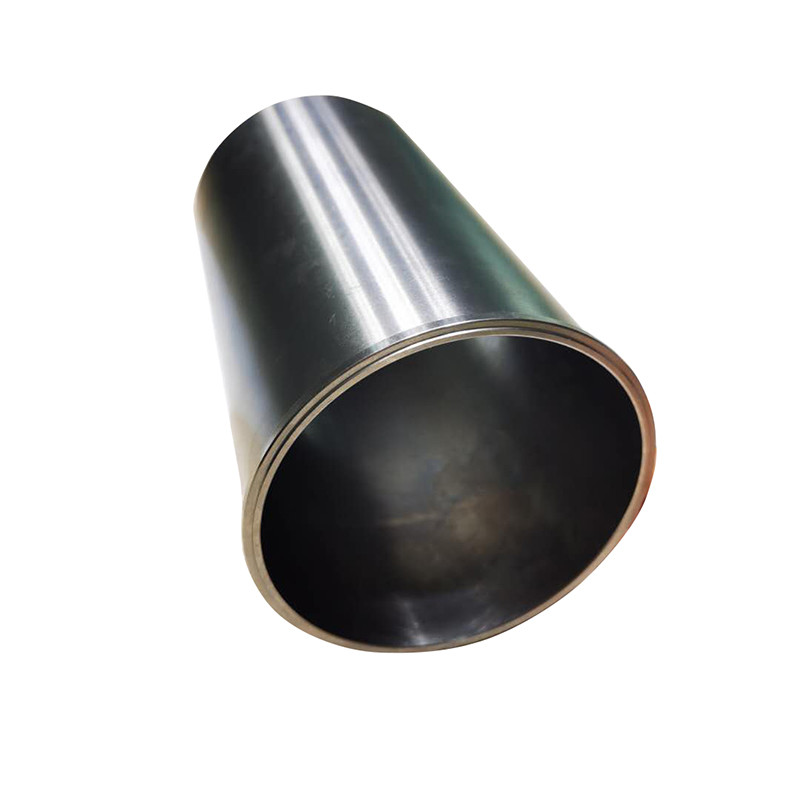

Perkins A4.236 T6.354 Cast Iron Cylinder Sleeve 3135X032 3637032M1 3637332M1 2

FAQ

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral Carton with pallet or non-fumigation plywoodcase.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the bala-nce.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample

cost and the courier cost.

Q5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them,

no matter where they
come from.

Professional Sales online to answer your question timely within 12 hours.
Please don't hesitate to contact us for more information about ENGINE AND SPARES.

Warmly welcome you to visit our ofice and factory!
Hope we can set up mutually benefically business relationship.
